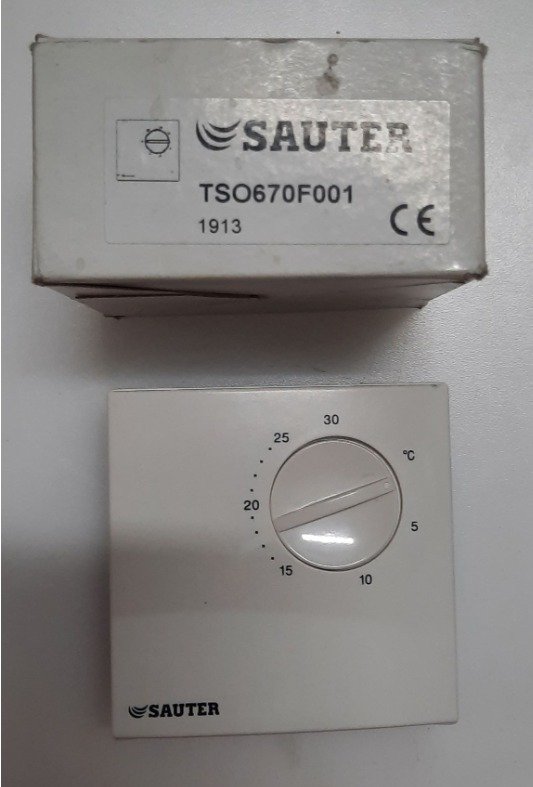

THERMOSTAT, ROOM UNIT, 24V, 5-30 C, WHITE,

THERMOSTAT, ROOM UNITPOWER SUPPLY MAX: 24-VOLT, 1 APOWER SUPPLY MIN: 24-VOLT, 0.2 ASETTING RANGE: 5-30 CNIGHT-TIME REDUCTION (N/R): APPROX. 5 KTIME CONSTANT IN STILL AIR: 17 MINTIME CONSTANT IN MOVING AIR (0.2 M/S): 13 MINPROPORTIONAL BAND: APPROX. 3 KSHORTEST SWITCHING INTERVAL: APPROX. 19 MIN (E = 0.5)ADMISSIBLE AMBIENT TEMPERATURE: 0-50 CHOUSING COLOR: PURE WHITE (RAL 9010)HOUSING MATERIAL: FIRE-RETARDANT THERMOPLASTICFITTING: WALL/RECESSEDCABLE INLET: AT REARBASEPLATE: BLACK THERMOPLASTIC WITH MEMBRANE SENSOR AND CONTACT SYSTEMSCREW TERMINALS: FOR WIRE OF UP TO 1.5 MM TYPE OF PROTECTION: IP 20 (EN 60529)PROTECTION CLASS: II (IEC 60730)DIMENSIONS: 76 Ó 76 MMNON-ELECTRICAL CLARIFICATION ATTACHED
