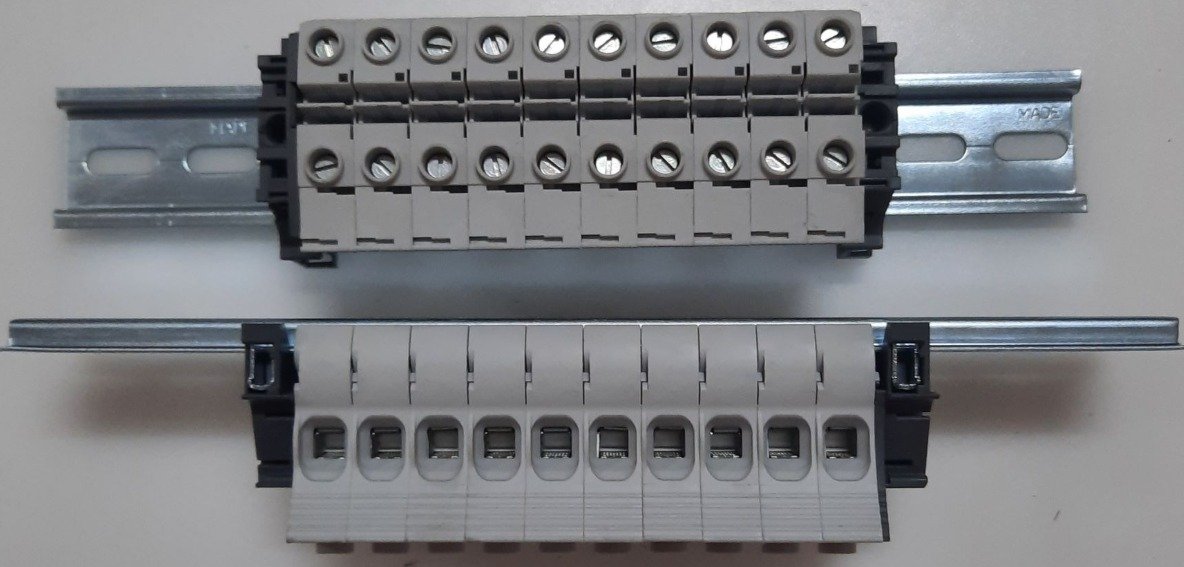

TERMINAL BLOCK, 10 POLE

TERMINAL BLOCK VOLTAGE: 600, NUMBER OF POLES: 10 AMPERAGE: 100A, IEC – 1000V/101A CONDUCTORS AWG (MM2): SOLID 14~3 (1.5~25) FLEXIBLE 14~3 (1.5~25) RATED IMPULSE WITHSTAND VOLTAGE: 8KV SCREW / TORQUE N•M (LB-IN): M5 / 3.4 (30.1) WIRE STRIP LENGTH – MM: 13~15 DIMENSIONS (W X H X D): 12 X 52.2 X 46.7 MM, ACCESSORIES INCLUDE: MARKING LABELS PARTITION PLATES, SIDE INSERTION BRIDGE AND TOP SCREW-ON BRIDGE FOR IMPROVED RELIABILITY COMES WITH MATCHING SHAPED GROUNDING BLOCKS DESIGNED FOR 35MM DIN AND 32MM G-TYPE RAILS CERTIFICATION ATTACHED – NRTL/UL APPROVED
