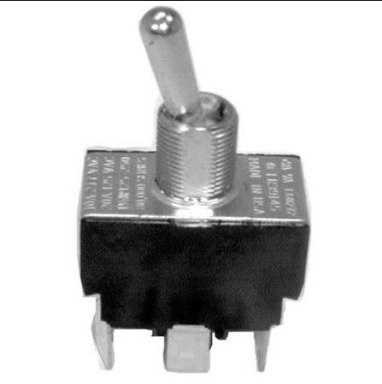

SWITCH, TOGGLE, OVEN, PLASTIC, 277 V, 15A, 1.25 X 0.81 X 0.72 INCHES, MANUFACTURER: GENERAL ELECTRIC (GE), HOBART, MODEL: 00-340324-00009, 340324-9,

BODY: STYLE BUSHING MOUNT OVERALL HEIGHT: 1.687 INCHES NOMINAL BUSHING LENGTH: 0.500 INCHES NOMINAL BODY LENGTH: 1.250 INCHES NOMINALBODY WIDTH: 0.812 INCHES NOMINALBODY HEIGHT: 0.719 INCHES NOMINALCASE MATERIAL: PLASTIC ACTUATOR STYLE: ROUND ACTUATOR DIAMETER 0.219 INCHES NOMINAL ACTUATOR HEIGHT: 0.562 INCHES NOMINAL ACTUATOR POSITION- ACTION RELATIONSHIP: UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED MAXIMUM VOLTAGE RATING IN VOLTS: 277.0 AC INCLOSURE TYPE: FULLY INCLOSED MOUNTING METHOD: THREADED BUSHING THREAD QUANTITY PER INCH: 32 NOMINAL THREAD SIZE: 0.469 INCHES NONPILE-UP CONTACT ARRANGEMENT: 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE: 15.000 AMPERES RESISTIVE AC SPECIAL FEATURES: DOUBLE FLATTED BUSHING WITH KEYWAY THREAD SERIES DESIGNATOR: UNS TERMINAL TYPE AND QUANTITY: 6 QUICK DISCONNECT, MALE END ITEM: VULCAN HART, OVEN, MODEL NO: VC4EDCERTIFICATION ATTACHED – NRTL/UL APPROVED
