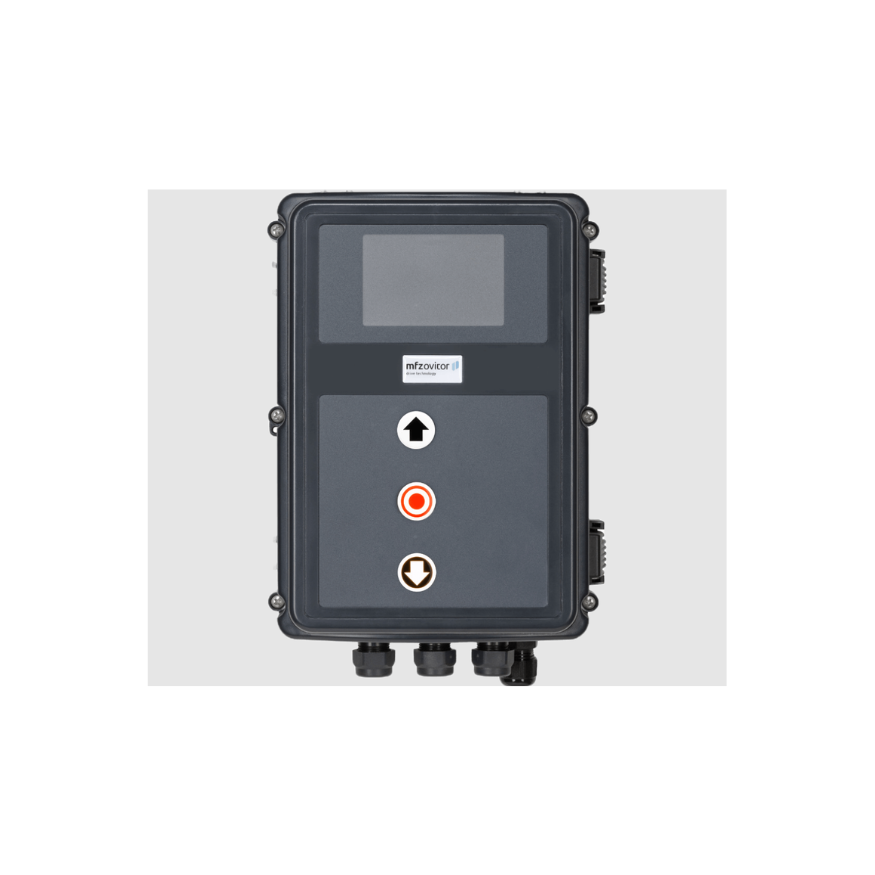

SWITCH, SENSITIVE, DOOR CONTROL

SWITCH, SENSITIVE, TYPE: DOOR CONTROL UNIT FOR MFZ/OVITOR DRIVES , WITH DIGITAL LIMIT SWITCH AWG OR MECHANICAL LIMIT SWITCH, HOUSING MATERIAL: PVC-HOUSING, SUPPLY VOLTAGE: 1~230/ 3~230/ 3~400 V AC, MODES OF OPERATION: HOLD-TO-RUN/ AUTOMATIC, TIMER-TO-CLOSE: YES, PARTIAL OPENING: YES, PROGRAMMABLE RELAY CONTACT: 4 X, RWA: NO, LOCK: NO, RADIO FUNCTION: OPTIONAL, SENSOR INPUTS: OSE, 8K2, DW, PHOTO EYE, CERTIFICATES: DIN EN 12453:2017, OPERATING TEMPERATURE: -20 ? +60 ?C, PROTECTION CLASS: IP 65, MODEL: CS 320, WIDTH: 215 MM, LENGTH: 275 MM, HEIGHT: 130 MM, FEATURES:, AUTOMATIC COMFORT CONTROLLER FOR INDUSTRIAL DOORS., EN 12453:2017 CERTIFIED, FLEXIBILITY DUE TO VARIOUS CONNECTION POSSIBILITIES, ADDITIONAL MODULES AVAILABLE FOR CONNECTION THROUGH MSBUS, VARIABLE FREQUENCY DRIVE CONTROL POSSIBLE VIA THE FI FUNCTION ON COMPATIBLE DRIVES, PLUGGABLE WIRELESS SYSTEM, LCD DISPLAY AS PLAIN TEXT INDICATOR, ILLUMINATED LID KEYBOARD, CONNECTION POSSIBILITIES WITH VARIOUS SENSORS, COMPATIBLE WITH THE EXISTING ACCESSORIES PROGRAMME OF THE CS 310, CERTIFICATE ATTACHED ?NRTL/ UL APPROVED
