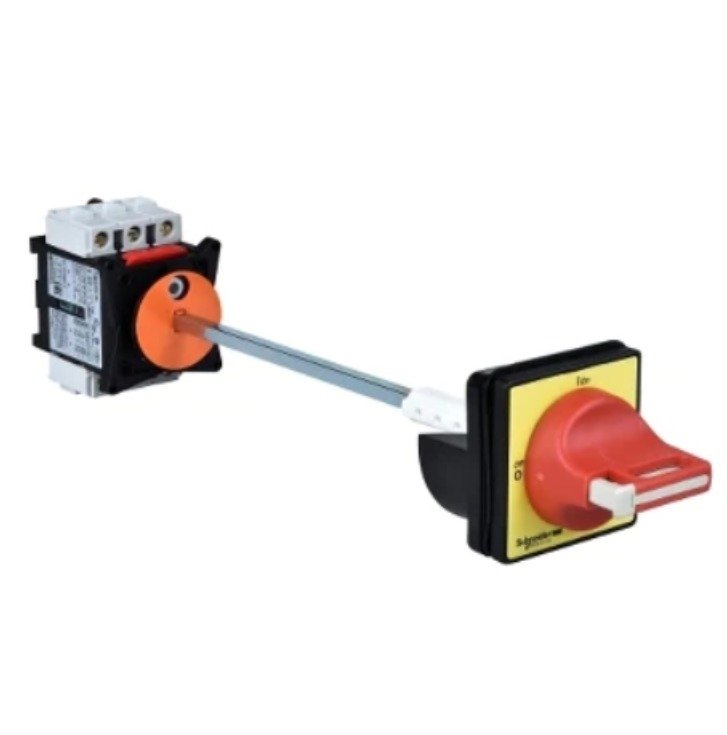

SWITCH, DISCONNECT, ROTARY, 3-POLE

SWITCH DISCONNECTOR RANGE: TESYS NUMBER OF POLES: 3P CONTACT TYPE AND COMPOSITION: 3 NO IEC RATED OPERATIONAL VOLTAGE: 690 V AC 50/60 HZ CONTROL TYPE: ROTARY HANDLE ROTARY HANDLE MOUNTING STYLE: EXTENDED HANDLE COLOR: RED HANDLE FRONT PLATE COLOR: YELLOW CONVENTIONAL FREE AIR THERMAL CURRENT: 63 A CONVENTIONAL ENCLOSED THERMAL CURRENT: 50 A DEGREE OF PROTECTION: IP20 CONFORMING TO IEC 60529 IP65 FOR ON/EMERGENCY STOP MOUNTING: FOR MOUNTING AT BACK OF AN ENCLOSURE FIXING: SCREW FIXING (4 SCREW) BASE DIMENSION 60 X 60 MM HEIGHT 3.27 IN (83 MM) WIDTH 2.36 IN (60 MM) * ELECTRICAL CERTIFICATE ATTACHED *
