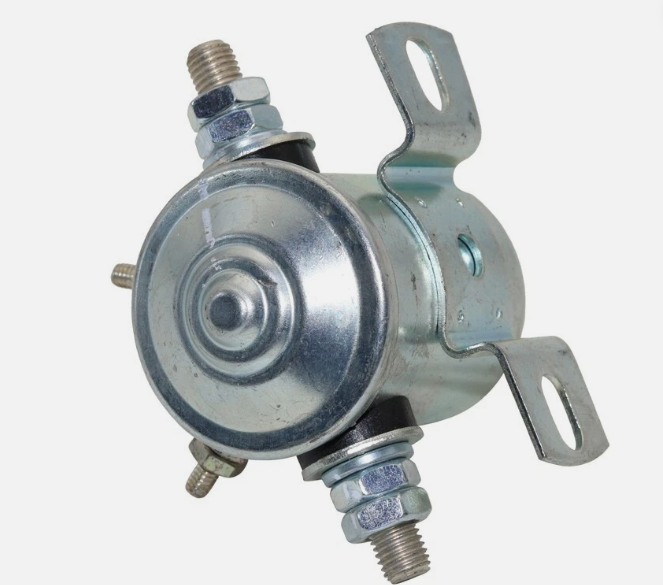

RELAY, ELECTROMAGNETIC, 1 POLE,

OVERALL LENGTH: 2-73/100 INCHES NOMINALCENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH: 2-109/1000 INCHES NOMINAL SINGLE MOUNTING FACILITYOVERALL HEIGHT: 2-9/20 INCHES NOMINALOVERALL WIDTH: 3-12/25 INCHES NOMINALMOUNTING SLOT WIDTH: 7/20 INCHES NOMINAL SINGLE MOUNTING FACILITYIII END ITEM IDENTIFICATION: TYPE NO. AN/SRC-82; 2320-01-097-0248, 2320-01-097-0249, 2320-01-100-7672, 2320-01-097-0260, 2320-01-195-7641, HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS); MRAP – M-ATV UIWINDING QUANTITY: 1COIL QUANTITY: 1WINDING DC RESISTANCE RATING: 60 OHMS NOMINAL SINGLE WINDINGDUTY TYPE: INTERMITTENTMOUNTING FACILITY TYPE AND QUANTITY: 2 SLOTTED HOLE SINGLE MOUNTING FACILITYMOUNTING FACILITY PATTERN: IN-LINE SINGLE MOUNTING FACILITYNONPILE-UP MAIN CONTACT ARRANGEMENT: 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTIONNOMINAL OPERATING CURRENT RATING AND TYPE: 40 MILLIAMPERES DC SINGLE WINDINGOPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP: 24 VOLTS DC 25 DEG CELSIUS SINGLE WINDINGMAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE: 40 AMPERES DC RESISTIVE LOADMAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS: 28 DCPROPRIETARY CHARACTERISTICS: PACSTERMINAL TYPE AND QUANTITY: 4 PIN ALL FUNCTIONSEND ITEM: CATERPILLAR ENGINES: 3306/3406/C18 AND PERKINS ENGINES: 2300/2500/2800 SERIES. NON-ELECTRICAL CLARIFICATION ATTACHED
