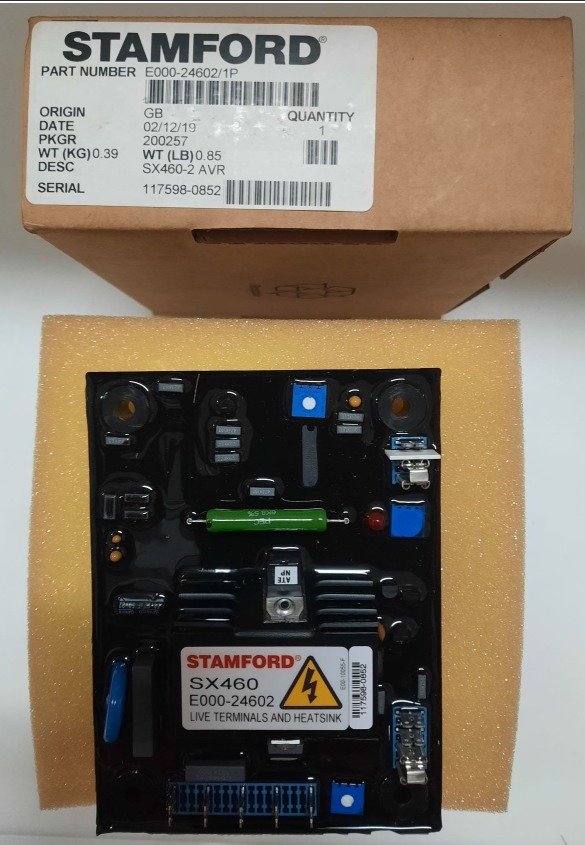

REGULATOR, VOLTAGE, 1 PH, 190-264VAC,

END ITEM IDENTIFICATION: 20MS22DAH (1SAF5), GENERATOR 20KW DIESAUTOMATIC VOLTAGE REGULATORINPUTVOLTAGE: JUMPER SELECTABLE 95-132V DC OR 190-264V ACFREQUENCY: 50-60 HZ, NOMINALPHASE: 1 PHOUTPUTVOLTAGE: MAX 90V DC AT 207V AC INPUT CURRENT CONTINUOUS 4 A DC INTERMITTENT 6 A FOR 10 SECS RESISTANCE: 15 OHMS MINIMUM; REGULATION: +/- 1.0 THERMAL DRIFT: 0.05 PER DEG. C CHANGE IN AVR AMBIENTTYPICAL SYSTEM RESPONSE: AVR-RESPONSE: 20 MS FILED CURRENT TO 90 : 80 MS;MACHINE VOLTS TO 97 : 300 MS EXTERNAL VOLTAGE ADJUSTMENT: +/-10 WITH 1 K OHM 1WATT TRIMMER; UNDER FREQUENCY PROTECTION- SET POINT: 95 HZ;SLOPE: 170 DOWN TO 30 HZ;UNIT POWER DISSIPATION: 10 WATTS MAXIMUM; BUILD UP VOLTAGE: 4 VOLTS AVR TERMINALSGENERATOR PART DOES NOT REQUIRE A 3RD PARTY TESTING CERTIFICATE PER DA_PAM_385-26.NON-ELECTRICAL CLARIFICATION ATTACHED
