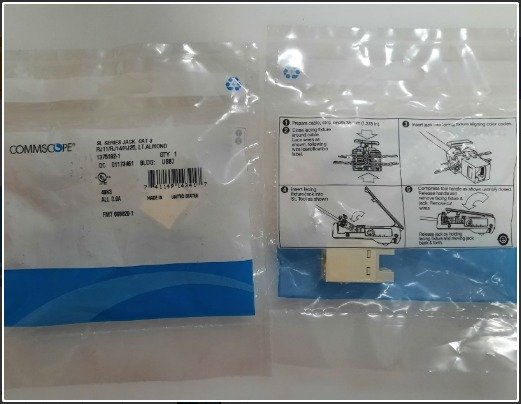

JACK, MODULAR, RJ11, 8-POSITION, UNSHIELDED, POLYCARBONATE, ALMOND,

MODULAR JACKSERIES: SL SERIES (SL110)TYPE: RJ11ANSI/TIA CATEGORY: 3CURRENT RATING, MAXIMUM: 0.75 ASAFETY VOLTAGE RATING: 150 VACPOSITION: 8-POSITIONCABLE TYPE: U/UTP (UNSHIELDED)COLOR: ALMONDMOUNT TYPE: SL SERIES FACEPLATES AND PANELSPANEL CUTOUT, RECOMMENDED: 14.78 X 20.07 MM (0.58 X 0.79 INCHES)PANEL THICKNESS, RECOMMENDED: 1.60 MMCONDUCTOR GAUGE, SOLID: 24‚22 AWGCONDUCTOR GAUGE, STRANDED: 26‚24 AWGCONDUCTOR TYPE: SOLID/STRANDEDCONTACT BASE MATERIAL: BERYLLIUM COPPERCONTACT PLATING MATERIAL: GOLDCONTACT PLATING THICKNESS: 1.27 MMATERIAL TYPE: POLYCARBONATETERMINATION TOOL: SL TERMINATION TOOLTERMINATION TYPE: IDCCOMPATIBLE CABLE DIAMETER, MAXIMUM: 5.80 MM / 0.23 INCHCOMPATIBLE INSULATED CONDUCTOR DIAMETER, MAXIMUM: 1.450 MM / 0.057 INCHOPERATING TEMPERATURE: -10 C TO +60 C (+14 F TO +140 F)TRANSMISSION STANDARD: ANSI/TIA-568-C.2 / ISO/IEC 11801 CLASS CFLAMMABILITY RATING: UL 94 V-0WIRING: T568A / T568BOUTLET TYPE: STANDARDDEPTH: 30.48 MM / 1.20 INCHESHEIGHT: 16.13 MM / 0.64 INCHWIDTH: 14.48 MM / 0.57 INCHCERTIFICATE ATTACHED- NRTL/UL APPROVED
