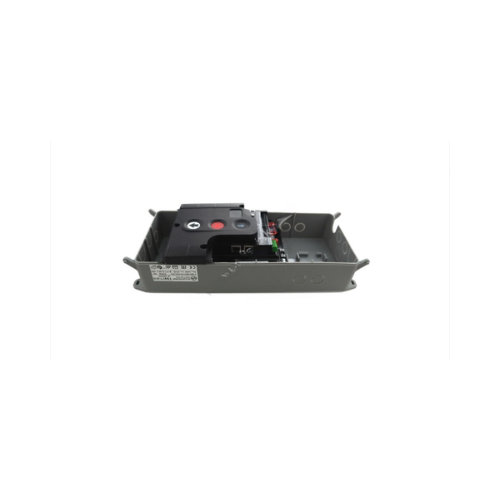

CONTROL UNIT, DOOR, w/AUTOMATIC CONTROL PANEL

DOOR CONTROL UNIT, SUPPLY VOLTAGE: 1~230/ 3~230/ 3~400 V AC, MODES OF OPERATION: HOLD-TO-RUN/ AUTOMATIC, TIMER-TO-CLOSE: YES, PARTIAL OPENING: YES, PROGRAMMABLE RELAY CONTACT: 2 X, CONTROL VOLTAGE: 24 VDC, RWA: NO, LOCK: NO, RADIO FUNCTION: OPTIONAL, SENSOR INPUTS: OSE, 8K2, DW, PHOTO EYE, FEATURES:, PROTECTION CLASS IP54 WITH CEE PLUF OR IP65 FOR DIRECT WIRING, INTEGRATED PUSH BUTTON FOR UP-STOP-CLOSE COMMANDS, INTEGRATED RADIO RECEIVER FOR 434 MHZ WIRELESS PRODUCTS, PARAMETER SETTING VIA SELECTOR SWITCH WITH DIGITAL DISPLAY, TWO INDEPENDENT, PROGRAMMABLE RELAY CONTACT, E.G. FOR RED-GREEN TRAFFIC-LIGHTS, OPERATING MODES: HOLD-TO-RUN MODE OR SELF-HOLD/ AUTOMATIC MODE, AUTOMATIC DETECTION OF SAFETY EDGE TYPE (OPTICAL EDGE FRABA VITECTOR, RESISTIVE EDGE 8K2 OR NC-CONTACT TYPE 1K2 WITH TESTING), AUTOMATIC TIMER-TO-CLOSE, ADJUSTABLE INTERMEDIATE OPEN POSITION, E.G. HALF OPEN, VENTING POSITION, AUTOMATIC GROUND ADJUSTMENT (ONLY DES) TO COMPENSATE FOR ROPE-STRETCH OR SUBSEQUENT CHANGE IN GROUND HEIGHT, CERTIFICATES: DIN EN 12453, DIN EN 12978, DIN EN 60335-2-103, DIN EN ISO 13849-1, OPERATING TEMPERATURE: -10 ? +50 ?C, WIDTH: 155 MM, LENGTH: 90 MM, HEIGHT: 386 MM, CERTIFICATE ATTACHED: TUV NORD
