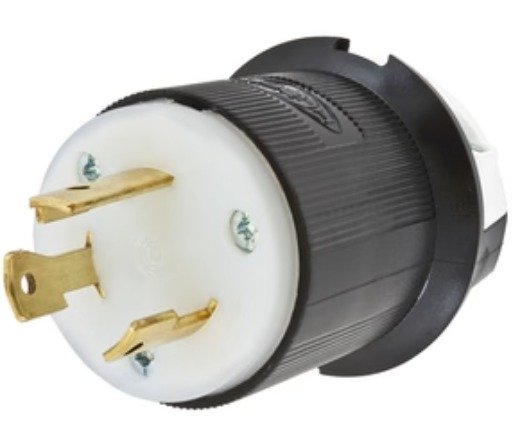

CONNECTOR, PLUG, ELECTRICAL, GROUNDING, 2-POLE, BLACK & WHITE, 3-WIRE, 125 V,

BODY STYLE: ANGLE SHAPE OVERALL LENGTH: 1 39/125
INCHES MAXIMUM OVERALL DIAMETER: 1 11/20
INCHES MAXIMUM ENVIRONMENTAL PROTECTION:
HEAT RESISTANT AND SALT WATER RESISTANT CABLE ENTRANCE DIAMETER: 0
13/40 INCHES MINIMUM AND 131/200 INCHES MAXIMUM MATING END QUANTITY: 1 CONTACT POSITION ARRANGEMENT
STYLE: 130-2-IEC-18 SINGLE MATING END CONTACT REMOVABILITY:
REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS CONTACT MAXIMUM CURRENT
RATING IN AMPS: 20 SINGLE MATING END ALL CONTACT GROUPINGS CONTACT MAXIMUM AC VOLTAGE
RATING IN VOLTS: 125 SINGLE MATING END ALL CONTACT GROUPINGS POLARIZATION METHOD: CONTACT
CONNECTOR CABLE STRAIN
RELIEF METHOD: CRIMP TYPE TERMINAL LOCATION: SIDE
SINGLE MATING END ALL CONTACT GROUPINGS CONTACT MATERIAL: COPPER
ALLOY SINGLE MATING END ALL CONTACT GROUPINGS TERMINAL TYPE: SCREW SINGLE
MATING END ALL CONTACT GROUPINGS INCLUDED CONTACT QUANTITY: 1
SINGLE MATING END 1ST CONTACT GROUPING INCLUDED CONTACT QUANTITY: 1
SINGLE MATING END 3RD CONTACT GROUPING INCLUDED CONTACT QUANTITY: 1
SINGLE MATING END 2ND CONTACT GROUPING TEST DATA DOCUMENT:
81348-W-C-596 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS,
BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT;
EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE
PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND
PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS
“TYPICAL”, “AVERAGE”, “NOMINAL”, ETC.). SPECIFICATION/STANDARD DATA:
81348-W-C-596/42 GOVERNMENT SPECIFICATIONCOLOR: BLACK
AND WHITENEMA RATING: 5-20PTYPE: GROUNDINGPOLE: 2-POLEWIRE: 3-WIRECERTIFICATE ATTACHED- NRTL/CSA
APPROVED
