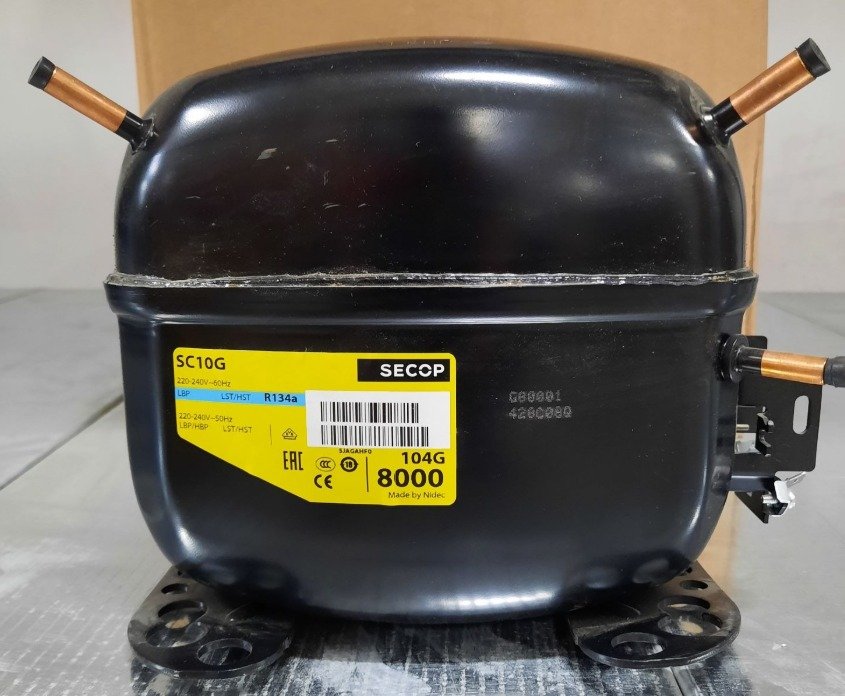

COMPRESSOR, RECIPROCATING, LRA 10.2/11.2A

RECIPROCATING COMPRESSORAPPLICATIONS: HBP; LBP; MBPAUXILIARY WINDING RESISTANCE (START WINDING) FOR SINGLE-PHASE COMPRESSORS: 13.6 OHMCAPACITY CONTROL: FIXED SPEEDCAPACITY OF CAPACITOR B: 80 UFCOLOR: BLACKCONFIGURATION CODE: SINGLECUT IN CURRENT HST: 11.2ACUT IN CURRENT LST: 15ADISCHARGE/SUCTION CONNECTION ANGLE: 37DISCHARGE/SUCTION CONNECTION COMMENTS: AL-CAPDISCHARGE CONNECTION DIAMETER: 6.2 MMDISCHARGE CONNECTION HEIGHT: 90 MMDISCHARGE/SUCTION CONNECTION MATERIAL: CU-PLATED STEELFREE GAS VOLUME: 1510 CM3FREQUENCY: 50/60 HZHEIGHT FROM BASEPLATE: 193 MMHIGH VALUE OF NOMINAL VOLTAGE AT 50/60HZ: 230 V HIGH VALUE OF VOLTAGE RANGE AT 50/60HZ: 254 VLRA HST: 11.2ALRA LST: 10.2ALOW VALUE OF NOMINAL VOLTAGE: 208 V AT 50HZ, 220 V AT 60HZLOW VALUE OF VOLTAGE RANGE: 187 V AT 50HZ, 198 V AT 60HZ MAIN WINDING RESISTANCE FOR SINGLE-PHASE COMPRESSORS: 7.9 OHMMOTOR TYPE: CSIR; RSIRNOMINAL COOLING CAPACITY 60 KBTU/H: 6.06NOMINAL COOLING CAPACITY AT 60HZ: 1.8OIL CHARGE: 550 LOIL QUANTITY: 550 CM3OIL TYPE: POEPHASE: 1RLA: 2.1 AREFRIGERANT: R134AREFRIGERANT CHARGE: 1.3 KG MAXROTATIONAL SPEED: 2900 RPM AT 50HZ, 3500 RPM AT 60HZ SEGMENT USAGE: REFRIGERATION LT; REFRIGERATION MTSUCTION CONNECTION DIAMETER: 8.2 MMSUCTION CONNECTION HEIGHT: 173 MMSWEPT VOLUME: 10.29 CM3TOTAL HEIGHT: 199 MMVOLTAGE: 220-240V, 50/60HZWINDING TEMPERATURE SHORT TERM MAX: 135CWINDING TEMPERATURE STAT MAX: 125C‚ BOLT JOINT COMPRESSOR 16 MM: MOUNTING ACCESSORIES, 118-1917‚ BOLT JOINT QUANTITIES 16 MM: BOLT JOINT, 118-1918‚ CORD RELIEF: CORD RELIEF SC EU/UL, 103N1004‚ COVER ELECTRICS DESCRIPTION COVER SC-220V, 103N2009‚ PTC RSIR 6.3 MM DESCRIPTION PTC STARTER 220V 25OHM TYPE S-III 6,3MM, 103N0011‚ SNAP ON IN QUANTITIES 16MM DESCRIPTION SNAP-ON, 118-1919‚ STARTING RELAY HST DESCRIPTION STARTING RELAY NL/SC, 117U6002END ITEM: INOKSAN REFRIGERATED COUNTER, MODEL: KBH 190CERTIFICATION ATTACHED-NRTL/UL APPROVED
