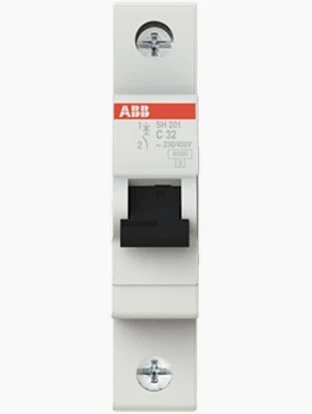

CIRCUIT BREAKER, MINIATURE, 1 POLE, 230/400V

MINIATURE CIRCUIT BREAKERNUMBER OF POLES: 1 POLETRIPPING CHARACTERISTIC: CRATED CURRENT (IN): 32 ARATED OPERATIONAL VOLTAGE: 230 / 400 V
ACRATED VOLTAGE (UR): 230 V ACPOWER LOSS: 2.5 W AT RATED OPERATING
CONDITIONS PER POLE 2.5 WRATED INSULATION VOLTAGE (UI): 440 VOPERATIONAL VOLTAGE: MAXIMUM 253 V AC, MINIMUM
12 V ACRATED FREQUENCY: 50/60 HZRATED SHORT-CIRCUIT CAPACITY (ICN): (230 /
400 V AC) 6 KAENERGY LIMITING CLASS: 3OVERVOLTAGE CATEGORY: IIIPOLLUTION DEGREE: 2RATED IMPULSE WITHSTAND VOLTAGE (UIMP):4 KVDIELECTRIC TEST VOLTAGE: 50/60 HZ, 1 MIN: 2
KVHOUSING MATERIAL: INSULATION GROUP II, RAL
7035ACTUATOR TYPE: TOGGLEACTUATOR MATERIAL: INSULATION GROUP II,
BLACK, SEALABLEACTUATOR MARKING: I / OCONTACT POSITION INDICATION: ON / OFFDEGREE OF PROTECTION: IP20REMARKS: IP40 IN ENCLOSURE WITH COVERSCREW TERMINAL TYPE: CAGE TERMINALMOUNTING POSITION: ANYBUILT-IN DEPTH (T2): 69 MMDIMENSION (WIDTH X DEPTH X HEIGHT): 17.5 X
69 X 85 MM)CERTIFICATION ATTACHED ? AHJ APPROVED
