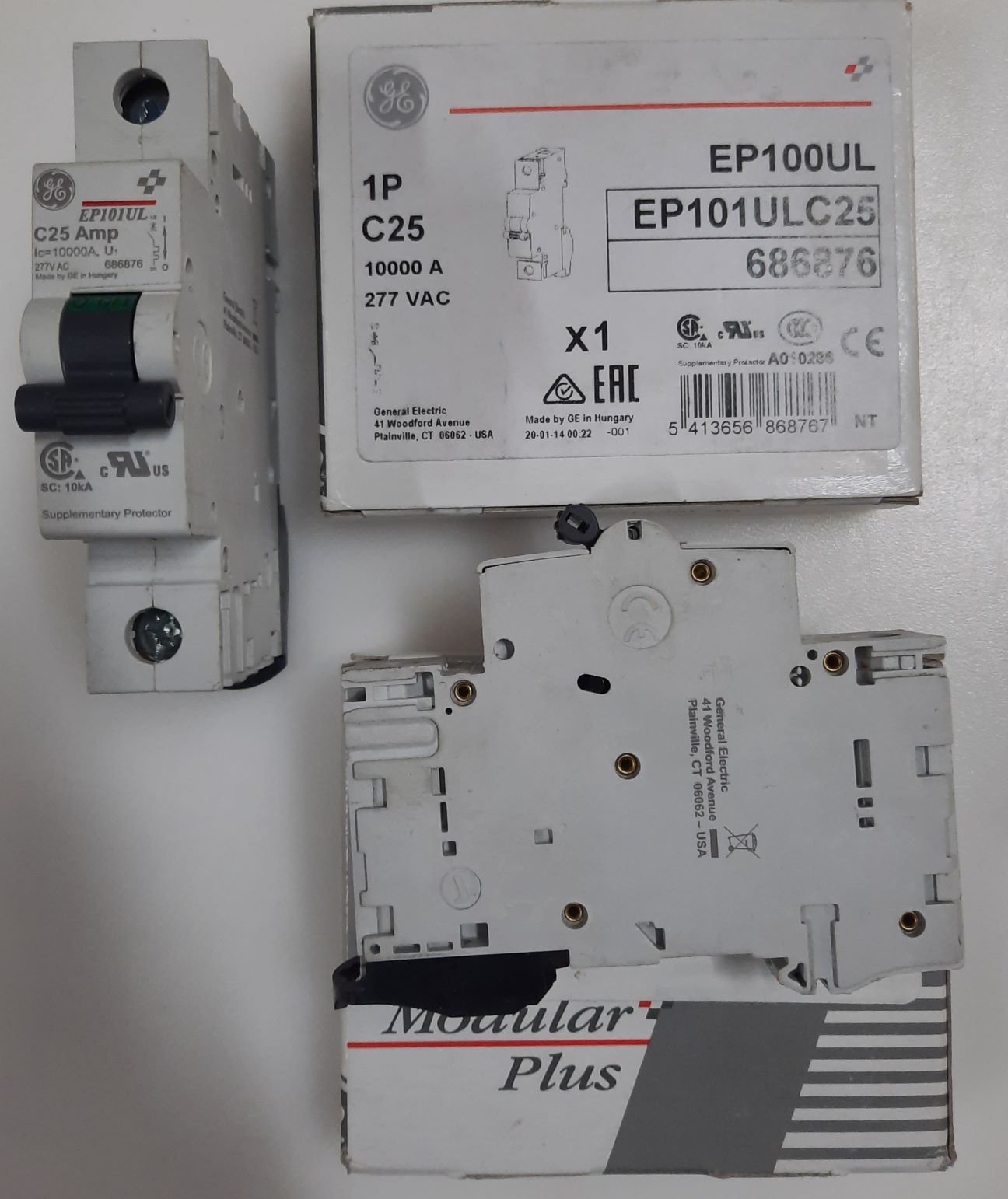

CIRCUIT BREAKER, C-CURVE, 1 POLE, 277 VAC

CIRCUIT BREAKERAMP RATING: 25 AMPSNUMBER OF POLES: 1POLENUMBER OF MODULES: 1TRIP CURVE: C-CURVECONNECTIONS-TOP/ BOTTOM: SCREW AC/DC: AC RATED VOLTAGE: 277 V/480 V SHORT-CIRCUIT CAPACITY: 10 (KA)SELECTIVITY CLASS: 3 TERMINAL CAPACITY MAX: 25-35 MM PRODUCT SERIES: EP100UL SERIESELECTRICAL SERVICE LIFE: 20000/10000 MINIMUM OPERATING VOLTAGE: 12 V OPERATING TEMPERATURE: -25C / 55C TERMINAL CAPACITY MIN: 0.75 / 1 MM DIMENSION: 86 X 68 X 0.71 MMCERTIFICATE ATTACHED- NRTL/UL APPROVED
