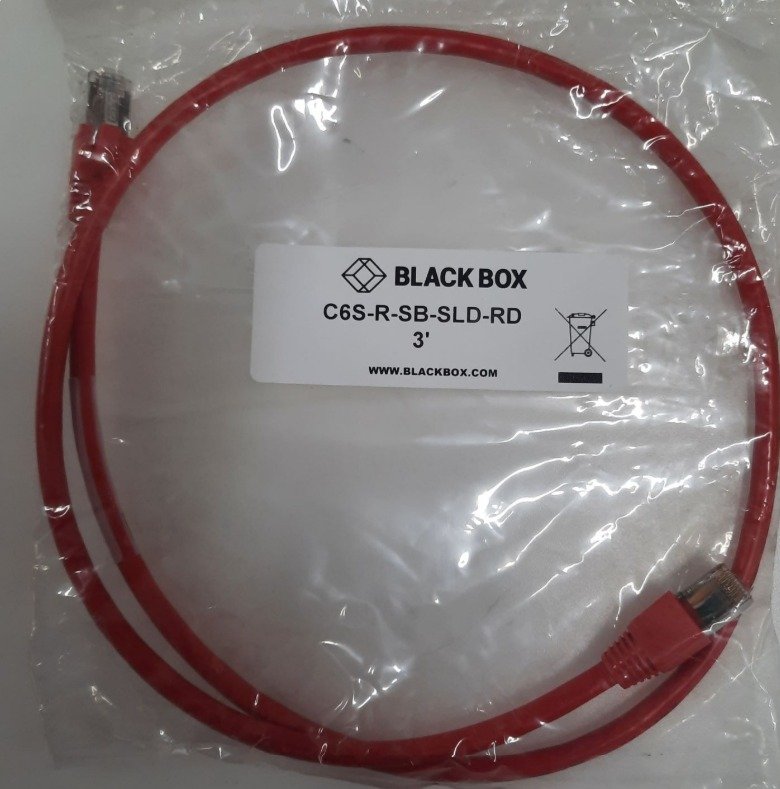

CABLE ASSEMBLY, PVC, RED, 24 AWG, 400 MHZ

TYPE: NETWORK CABLESHEATH COLOR: REDFREQUENCY: 400 MHZCONNECTOR ON FIRST END: 1 X RJ-45 MALE NETWORKCONNECTOR ON SECOND END: 1 X RJ-45 MALE NETWORKACR: 5.5 DB/100 M AT 250 MHZ ACRF: 19.8 DB/100 M AT 250 MHZ ATTENUATION: 32.8 DB/100 M AT 250 MHZ CABLE OUTSIDE DIAMETER (NOMINAL): 0.7 CM (0.3 INCH)CAPACITANCE UNBALANCE (PAIR TO GROUND): 330 PF/100 M MAXIMUM CONDUCTOR: 24 AWG, SOLID, BARE COPPER DELAY SKEW (MAXIMUM): 40 NS/100 M (328 FT.) IMPEDANCE: 1000 ± 15 INSULATION FEP (1.05 ± 0.02 MM) JACKET: PVC(POLYVINYL CHLORIDE); CM; ROHS COMPLIANT MUTUAL CAPACITANCE (NOMINAL): 46 PF/M NEXT: 52.0 DB/100 M AT 250 MHZ PROPAGATION DELAY: 536 NS/100 M AT 250 MHZ PS-ACR: 7.7 DB/100 M AT 250 MHZ PS-ELFEXT: 20.0 DB/100 M AT 250 MHZ PS-NEXT: 40.3 DB/100 M AT 250 MHZ RETURN LOSS: 29.0 DB/100 M AT 250 MHZ STANDARDS: UL 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT6; 2002/95/EC (ROHS) TEMPERATURE/VOLTAGE RATING: 167 F (75 C) AT 300 VUNIT OF MEASURE: ROLL (CONTAINS 3 FEET)NON-ELECTRICAL CLARIFICATION ATTACHED
